Helpful wiring sites

ECUs, lighting, alternator, starter, dash instruments, etc., we'll figure it out.
Midlana1
Site Admin
Posts: 2729
Joined: 19 Dec 2008, 16:44
Anti-spam question: 4
Are you a spammer: No
Location: Southern California

Helpful wiring sites

Postby Midlana1 » 26 Sep 2009, 15:09


Langan
Posts: 375
Joined: 21 Dec 2008, 09:52

Re: Helpful wiring sites

Postby Langan » 13 Dec 2009, 14:58

How about a How to wire your K series Honda?

User avatar
Karlo
Posts: 26
Joined: 23 Aug 2009, 10:56
Anti-spam question: 4
Are you a spammer: No
Location: Loss Wages
Contact:

Re: Helpful wiring sites

Postby Karlo » 13 Dec 2009, 16:34

Buy it and not to much figuring http://www.hybrid-racing.com/
www.KitSpeed.com

Midlana1
Site Admin
Posts: 2729
Joined: 19 Dec 2008, 16:44
Anti-spam question: 4
Are you a spammer: No
Location: Southern California

Re: Helpful wiring sites

Postby Midlana1 » 13 Dec 2009, 18:55

Langan wrote:How about a How to wire your K series Honda?


Maybe after the car's on the road and the book's done.

Langan
Posts: 375
Joined: 21 Dec 2008, 09:52

Re: Helpful wiring sites

Postby Langan » 13 Dec 2009, 19:42

Thanks Karlo
Buy what from them?

Midlana1
Site Admin
Posts: 2729
Joined: 19 Dec 2008, 16:44
Anti-spam question: 4
Are you a spammer: No
Location: Southern California

Re: Helpful wiring sites

Postby Midlana1 » 13 Dec 2009, 20:26

It looks like Hybrid has plug-and-play solutions for putting K-series engines into other Hondas, but that doesn't help us. We have to adapt the engine harness that comes with the engine to deal with not having the under-dash harness. It means picking out the important wires and ignoring ones that aren't, and there's no substitute for using the Electrical Troubleshooting Manual and just working through each circuit.

gt6mkiii
Posts: 7
Joined: 05 Nov 2009, 13:21
Anti-spam question: 4
Are you a spammer: No

Re: Helpful wiring sites

Postby gt6mkiii » 29 Jan 2010, 21:43

They also seem to have a loom for adapting K series motors into a "race car chassis". Is this something you would see being useful Kurt?

http://www.hybrid-racing.com/store/hybr ... gines.html

xero_xero
Posts: 36
Joined: 22 Apr 2010, 19:03
Anti-spam question: 4
Are you a spammer: No

Re: Helpful wiring sites

Postby xero_xero » 08 May 2010, 20:06

My personal stash of photos that i rob whenever i find them.

Wiring your k series, or any honda for that matter, is all about plug and play... at least to me.

so i give you the diagrams for the k series in a simple to understand pin by pin diagram with each separate plug.

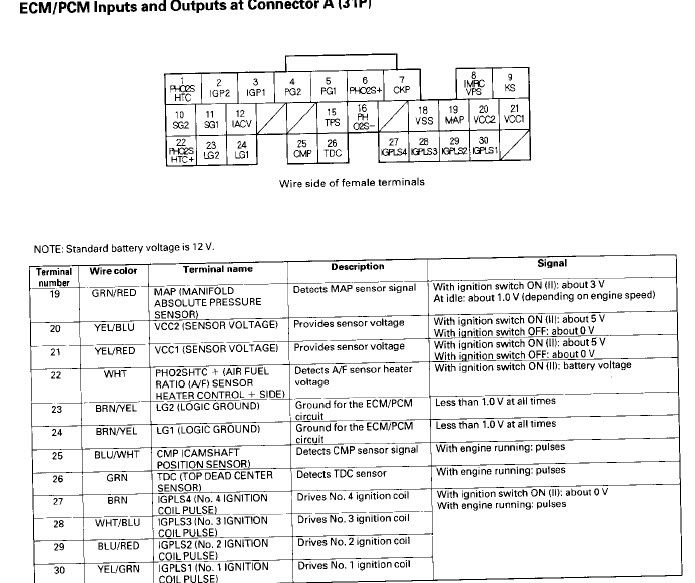

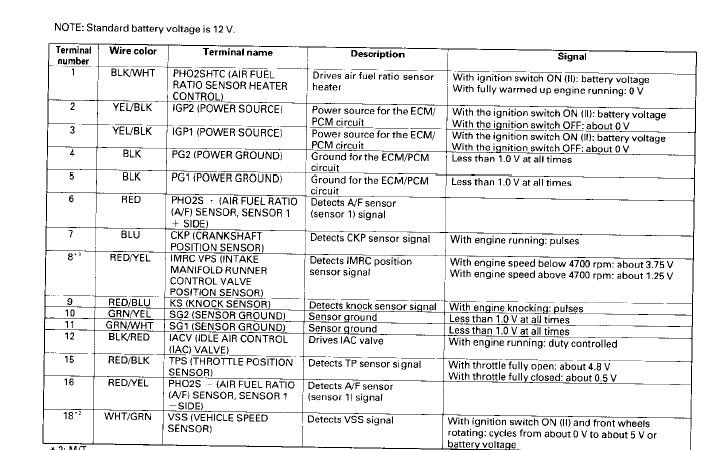

Connector A

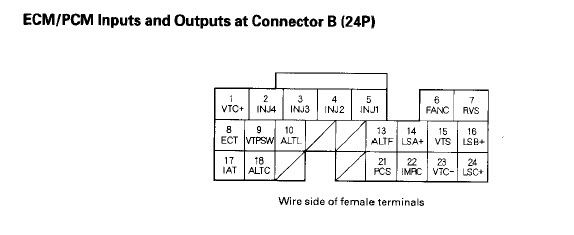

Connector B

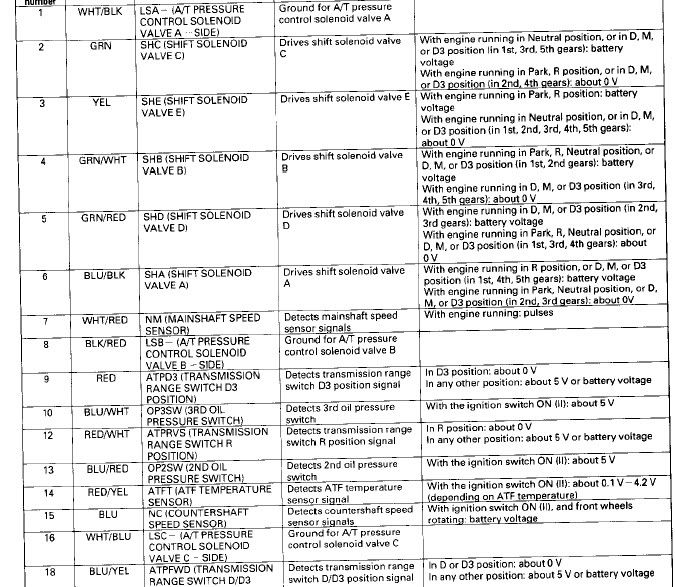

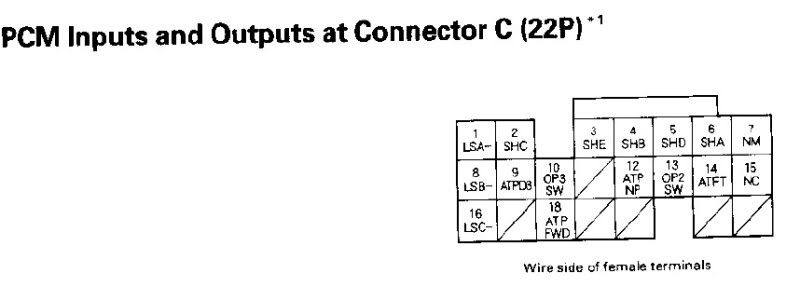

Connector C

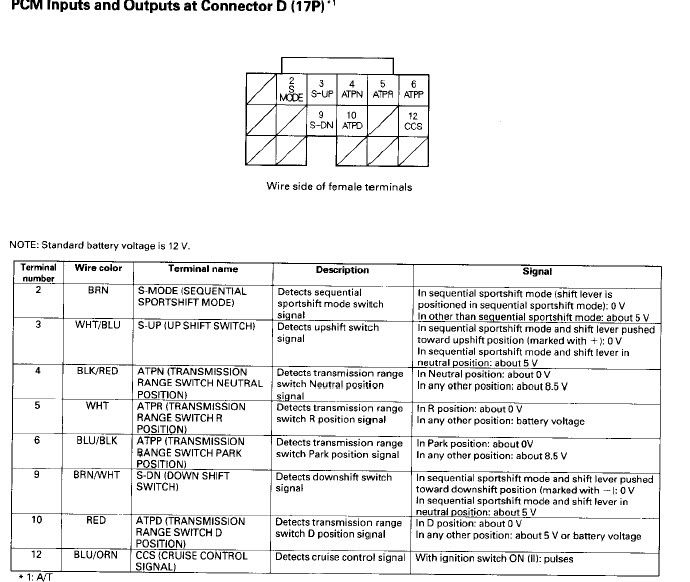

Connector D

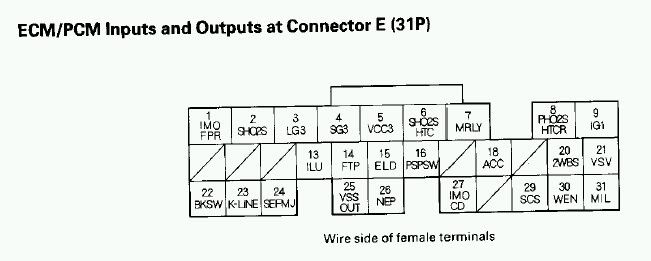

Connector E
Everyone here is building One for themselves... I want to build thousands for everyone....

xero_xero
Posts: 36
Joined: 22 Apr 2010, 19:03
Anti-spam question: 4
Are you a spammer: No

Re: Helpful wiring sites

Postby xero_xero » 08 May 2010, 20:35

This should help. adding connector plugs to the engine compartment or other areas for ease of access(swapping motors mainly) will help in overall maintainability of the car.

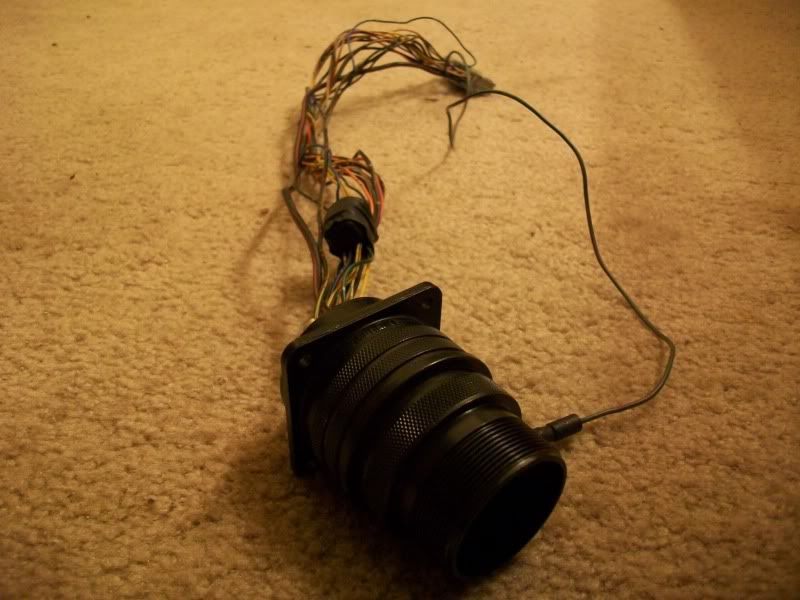

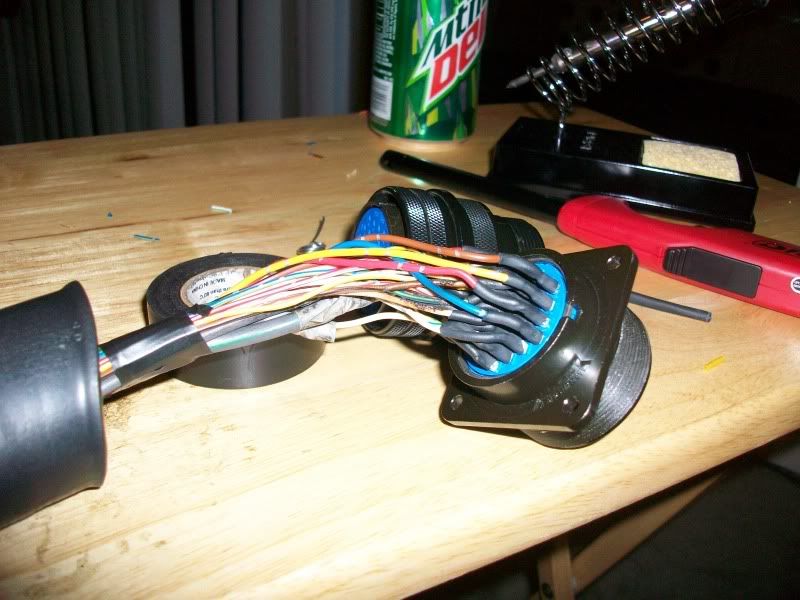

Waterproof connectors. all you would need to do is separate what you need from the wiring harness and route as needed, maybe even some pretty braided steel wraps would be good....

Everyone here is building One for themselves... I want to build thousands for everyone....

bgkast
Posts: 599
Joined: 17 Dec 2012, 11:33
Anti-spam question: 4
Are you a spammer: No

Re: Helpful wiring sites

Postby bgkast » 15 Jan 2014, 09:15
